Description

The new Salice EvoLift Parallel mechanism introduces a new dimension to lift systems. Using a coil spring mechanism that replaces the old gas-based system, the new system is more compact and offers high levels of continued performance.

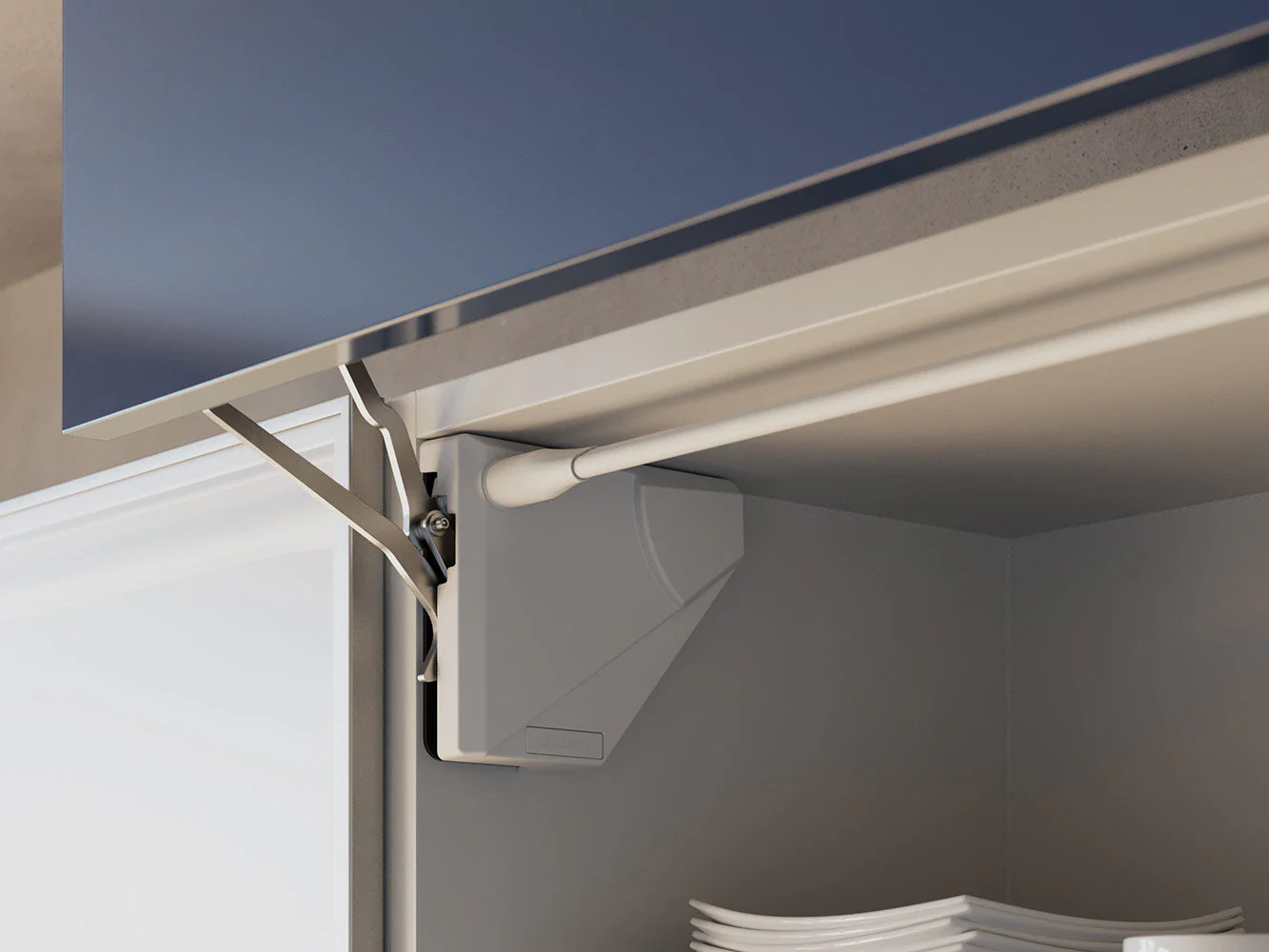

This is system is designed to suit doors between 440mm and 600mm tall. For shorter doors please order the system designed to suit smaller doors here.

The maximum door protrusion is 268mm + door thickness and handles.

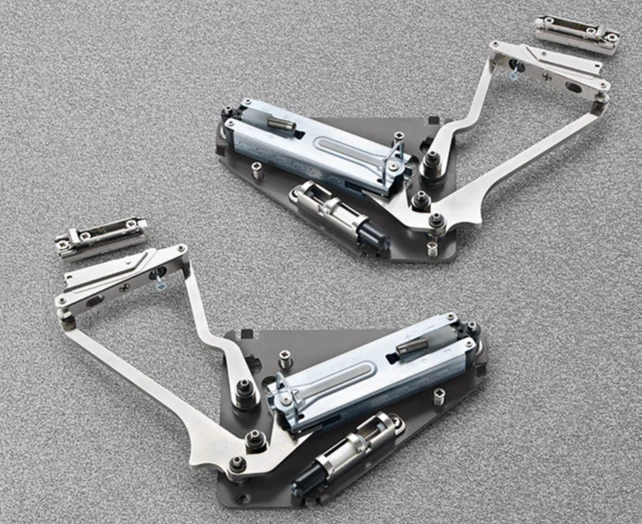

The system is sold as a complete kit including covers and stabiliser bar. Included is:

Pair of arm mechanisms (Left and Right)
Pair of Mounting plates for door
Pair of Covers (Choose White or Titanium)
Stabiliser Bar (Choose correct width for your cabinet)

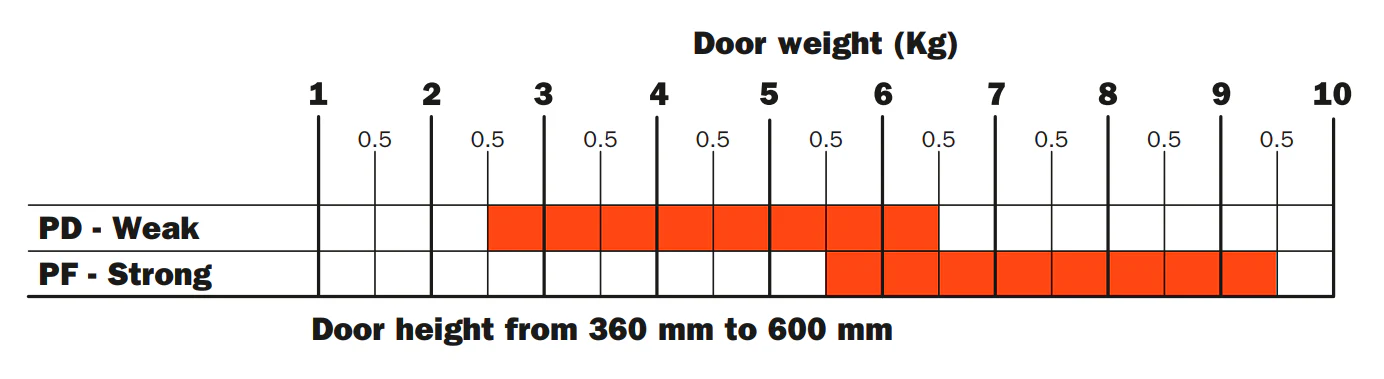

Please refer to the strength charts in the images or in the downloads tab to work out which strength system you need.

The stabiliser bar is cut down to size on site. Calculation = internal width of the cabinet - 126mm
