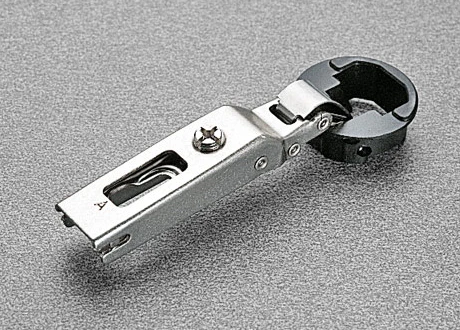

Salice 94Ā° Full Overlay Glass Door Hinge - C2C7A39
Description
This Series 200 hinge is designed to be used on glass doors with a thickness of 4-6mm.Ā
- 26mm Cup DiameterĀ
- 94Ā Degree Opening
- 0mm Crank
- Designed for full overlay doors
The possible drilling distance of the cup hole is 5.5 - 6.5mm from the edge of the door. To work out the height of mount plate required please consult the formula image to the left.
Linked Items
We recommend the inline style mount plates here.
Covers are sold separately here.
Downloads
Ā Download the Salice Glass Hinge Range Catalogue
