Salice Conecta Hinge for Aluminium Doors 10-12.5mm Overlay - CQZ3JE - From 25mm Thick

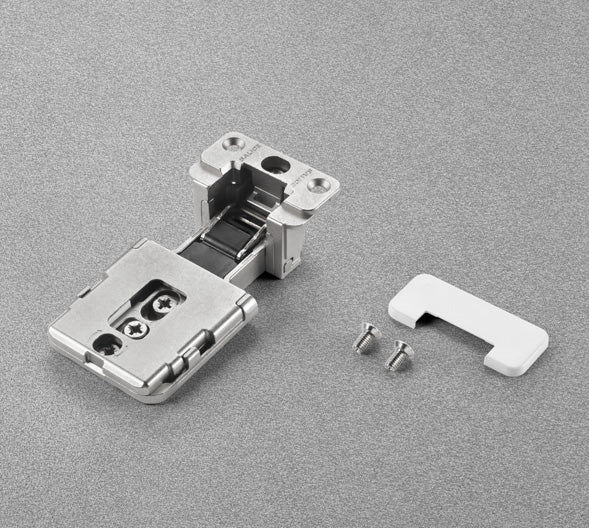

In the set:

• 2 x Hinges
• 2 x Flange Covers
• Fixing Screws

The Salice Conecta Hinge for Aluminium Doors from 25mm thick is the perfect combination of innovation and elegance. Its concealed design provides a sleek and refined finish while maintaining precise fluid movement. It is perfect for heavier and larger doors due to its high build quality, and provides customisability to suit any unique aesthetic. This hinge ensures an ease of use combined with unparalleled functionality.

Hinge body available in two finishes:

• Titanium (CQZ3JE6XXV) - supplied with titanium finish covers
• Nickel (CQZ3JE9XXV) - supplied with white finish covers

Technical Features

• Rapid fixing of the door to the cabinet side
• For aluminium-framed doors from 25mm thick
• 24 mm deep metal cup
• 94° opening
• Sideways adjustment -2 +0.5 mm
• Height adjustment -2,5 +2.5 mm
• Depth adjustment 0 +3 mm
• Concealed CQZ3JE hinge with recessed insertion in the door and in the side.
  - Door overlay on the side 14mm with holder DQG5
  - Door overlay on the side 16.5mm with holder DQG3
