Salice Diecast Clip-On Mount Plates - BAR3R Series

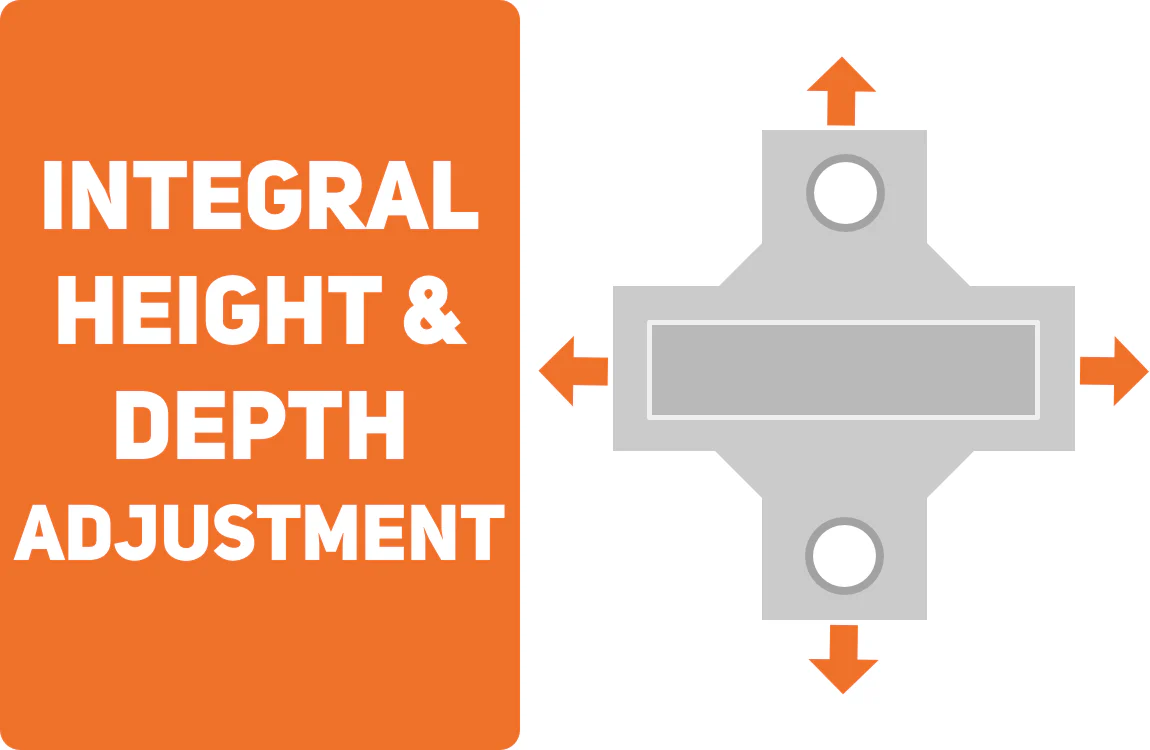

The 'Rolls Royce' of mounting plates they offer a good range of integral cam-action vertical adjustment and simple snap-on fitting of the hinge arm.

These plates are suitable for hinge series 200, 400, 700, F and M.

Requires 3.5mm / 6g countersunk woodscrews (not supplied)

Available in five effective heights:

• BAR3R09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
• BAR3R39 - 3mm - Typically used for FULL, 1/4 and 1/2 Overlay applications.
• BAR3R69 - 6mm - Typically used for INSET door applications.
• BAR3R99 - 9mm
• BAR3RC9 - 12mm

Available in two finishes:

• Nickel
• Titanium (0 & 3mm size only)

Screw holes to be drilled 37mm from edge of cabinet.
