Salice 110° Full Overlay Sprung Cabinet Hinge Nickel - C2A6A99
Description
This is the most common hinge found on most cupboards. It is designed for cupboards where the door fully overlays the frame of the cupboard, e.g. when the door is closed you cannot see or can only see a fraction of the cupboard frame.
- Nickel - C2A6A99
Tech Details
- Full overlay hinge
- For doors of medium weight and thickness (16-26mm)
- 35mm diameter cup
- 11mm deep cup
- 110 Degree opening
- Possible drilling distance (K): 3mm - 6mm
Downloads
Which mount plate?
Mount plates are sold separately to the hinges as there are various styles, sizes and types available.

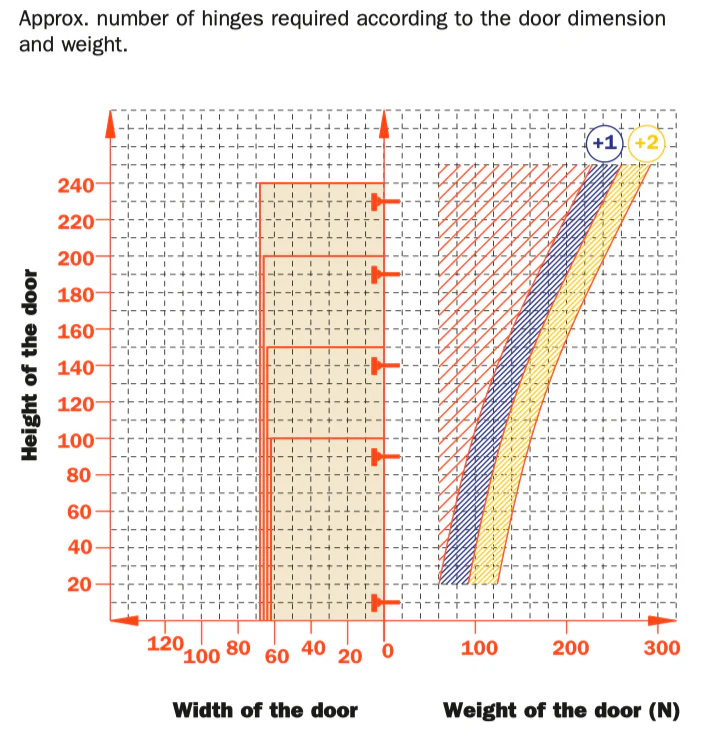

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.
Hinge ID
If you are unsure which hinge you have please forward a few photos of your hinge to [email protected]
