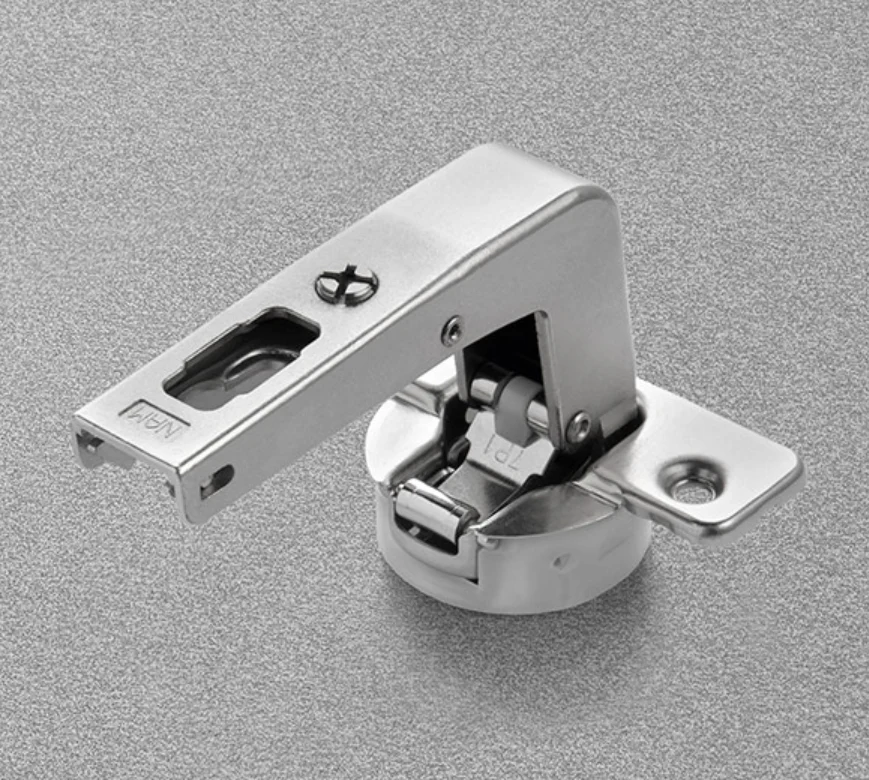

Salice Silentia+ Series 700 Soft Close 110° Long Crampon Hinge 48mm Centres - C7A6NE9AM

Description

The Salice Silentia+ Series 700 range is an integrated soft close hinge designed for standard doors between 16-26mm thick. The new Silentia+ system is operated by twin silicone-oil dampers housed in the hinge cup. The decelerating effect is adjusted by using a simple switch.

The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required.

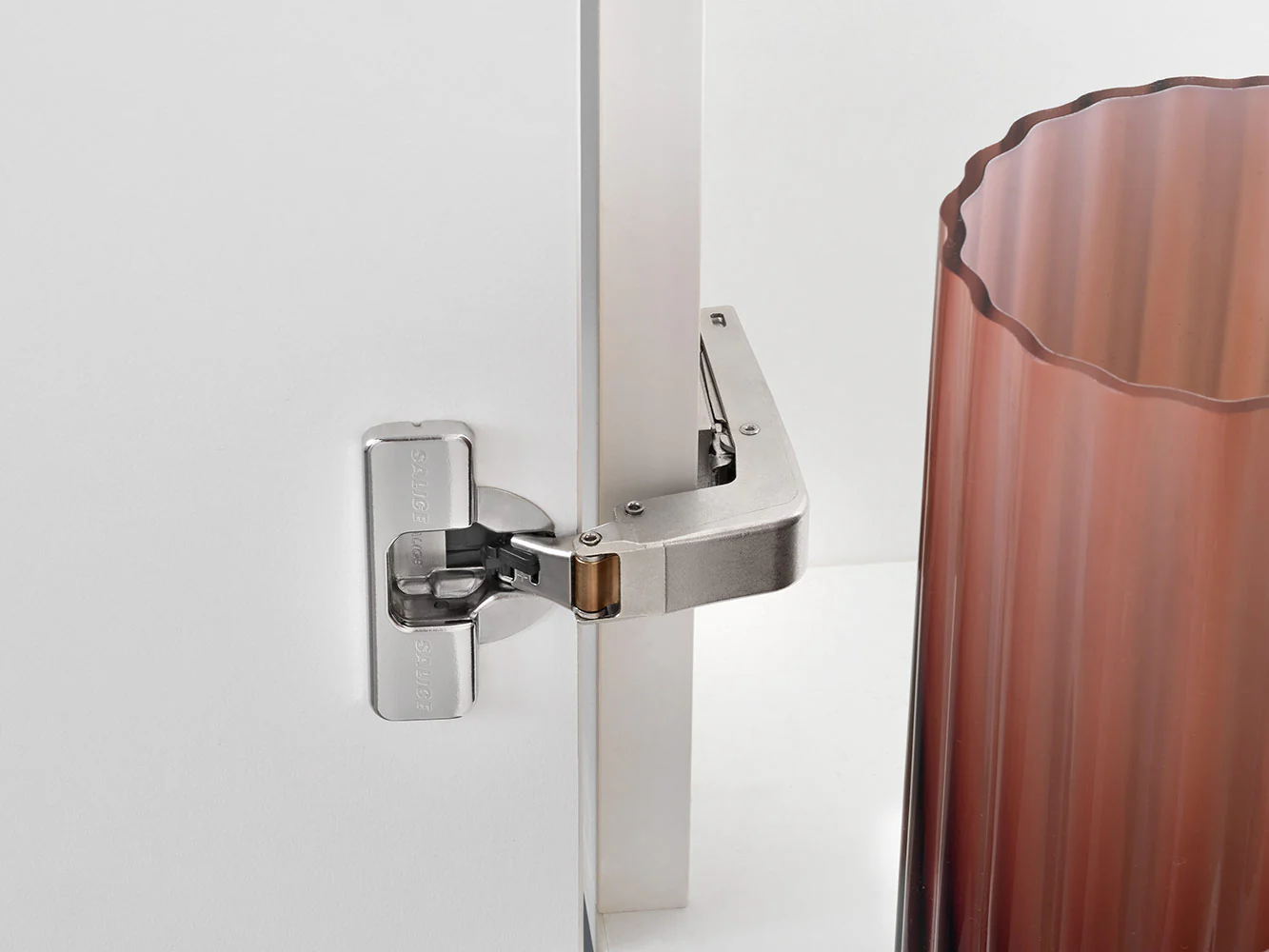

This is a long crampon hinge usually used on blind corner cupboards where the door sits atop the frame.

Tech Details

• Long Crampon hinge
• For cabinet sides with 37x32mm standard drilling
• 48mm screw centres
• Wood screw fixing (not supplied)
• To suit door thickness 16-26mm
• 35mm diameter cup
• 13.5mm deep cup
• 110 Degree opening

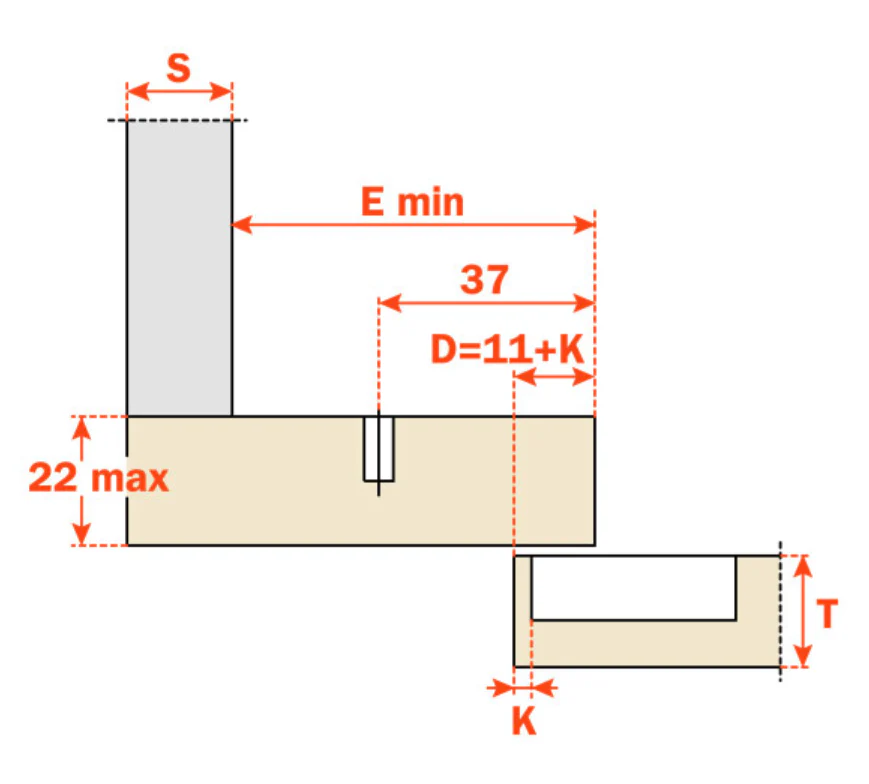

• Possible drilling distance (K): 3mm - 6mm
• E min:
• •61 mm for Series 200 mounting plates.
  •70 mm for Domi snap-on mounting plates.
  •74 mm for Domi snap-on mounting plates with back cam

Which mount plate?

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.

Hinge ID

If you are unsure which hinge you have please forward a few photos of your hinge to [email protected]
