Salice Silentia+ Series 700 Soft Close Inset 110° Hinge 48mm Centres - C7A6PE9

Description

The Salice Silentia+ Series 700 range is an integrated soft close hinge designed for standard doors between 16-26mm thick. The new Silentia+ system is operated by twin silicone-oil dampers housed in the hinge cup. The decelerating effect is adjusted by using a simple switch.

The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required.

This is the most common hinge found on most cupboards. It is designed for cupboards where the door is inset into the frame of the cupboard,

Tech Details

• Inset Applications - 17mm crank

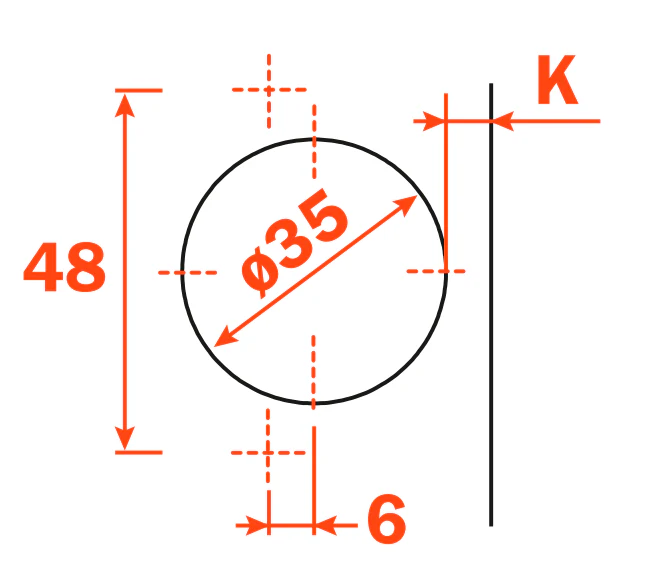

• 48mm fixing centres
• Wood screw fixing (not supplied)

• To suit door thickness 16-26mm

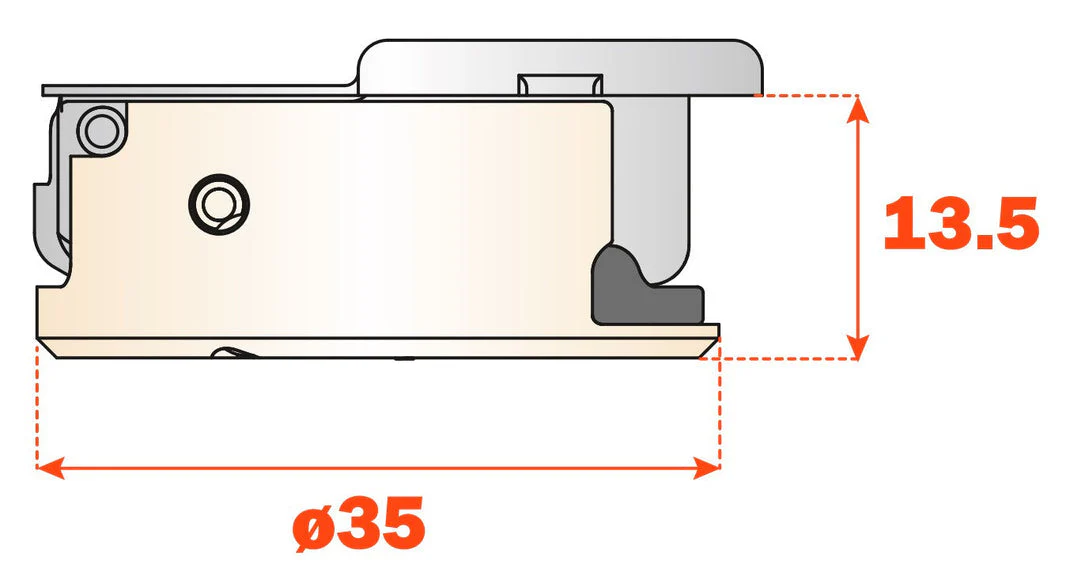

• 35mm diameter cup
• 13.5mm deep cup
• 110 Degree opening
• Possible drilling distance (K): 3mm - 6mm

Downloads

 Technical Features

 Silentia+ Switch Instructions

Hinge ID

If you are unsure which hinge you have please forward a few photos of your hinge to [email protected]
