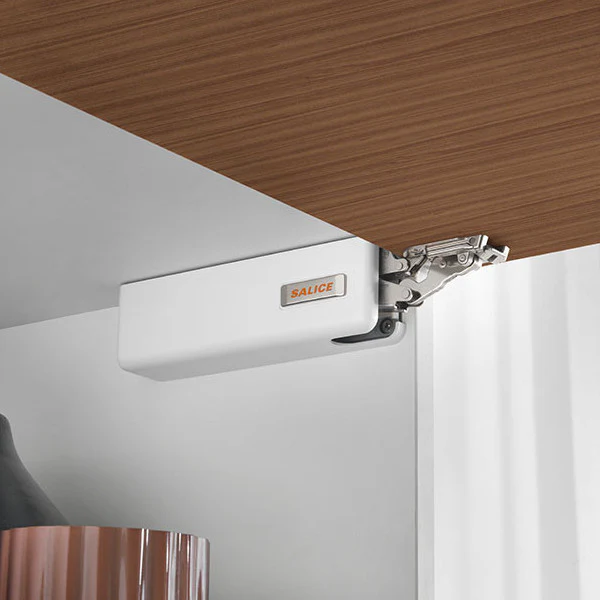

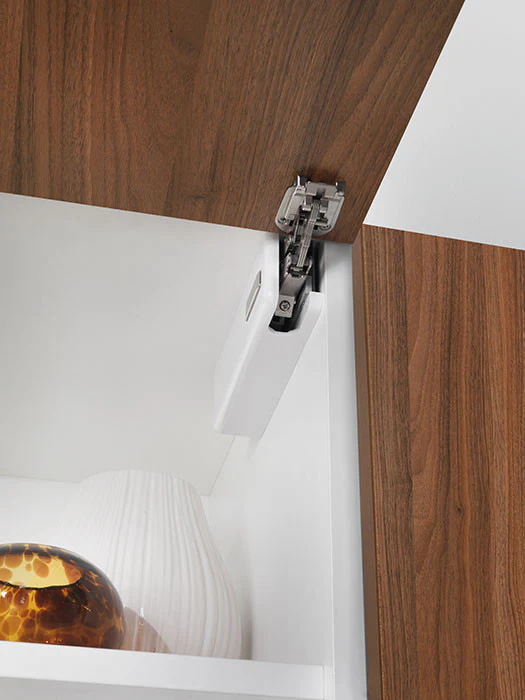

Salice Wind Soft Close Lift System for Wooden Doors

This is for the soft close version. Priced and sold as a complete kit including:

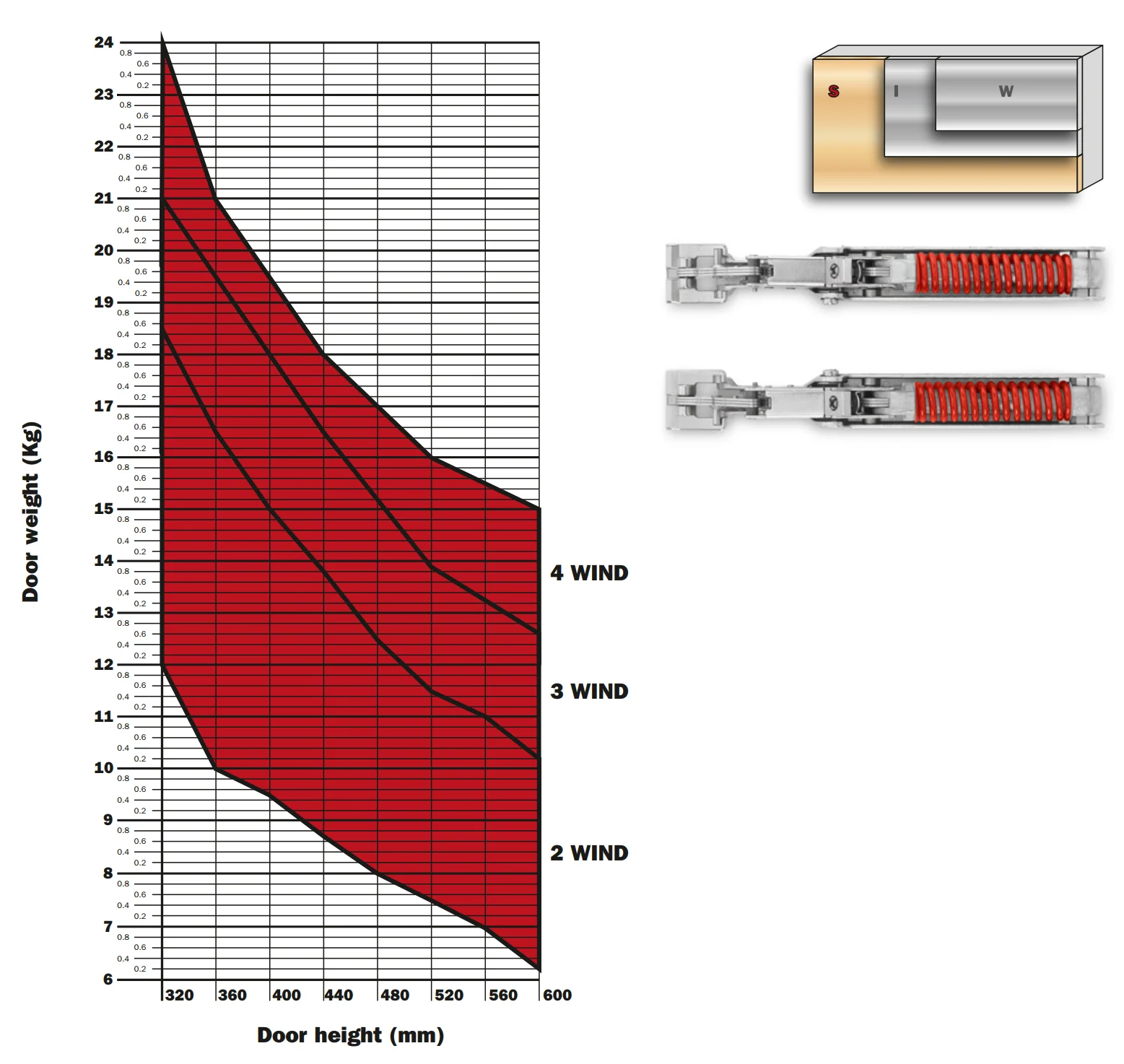

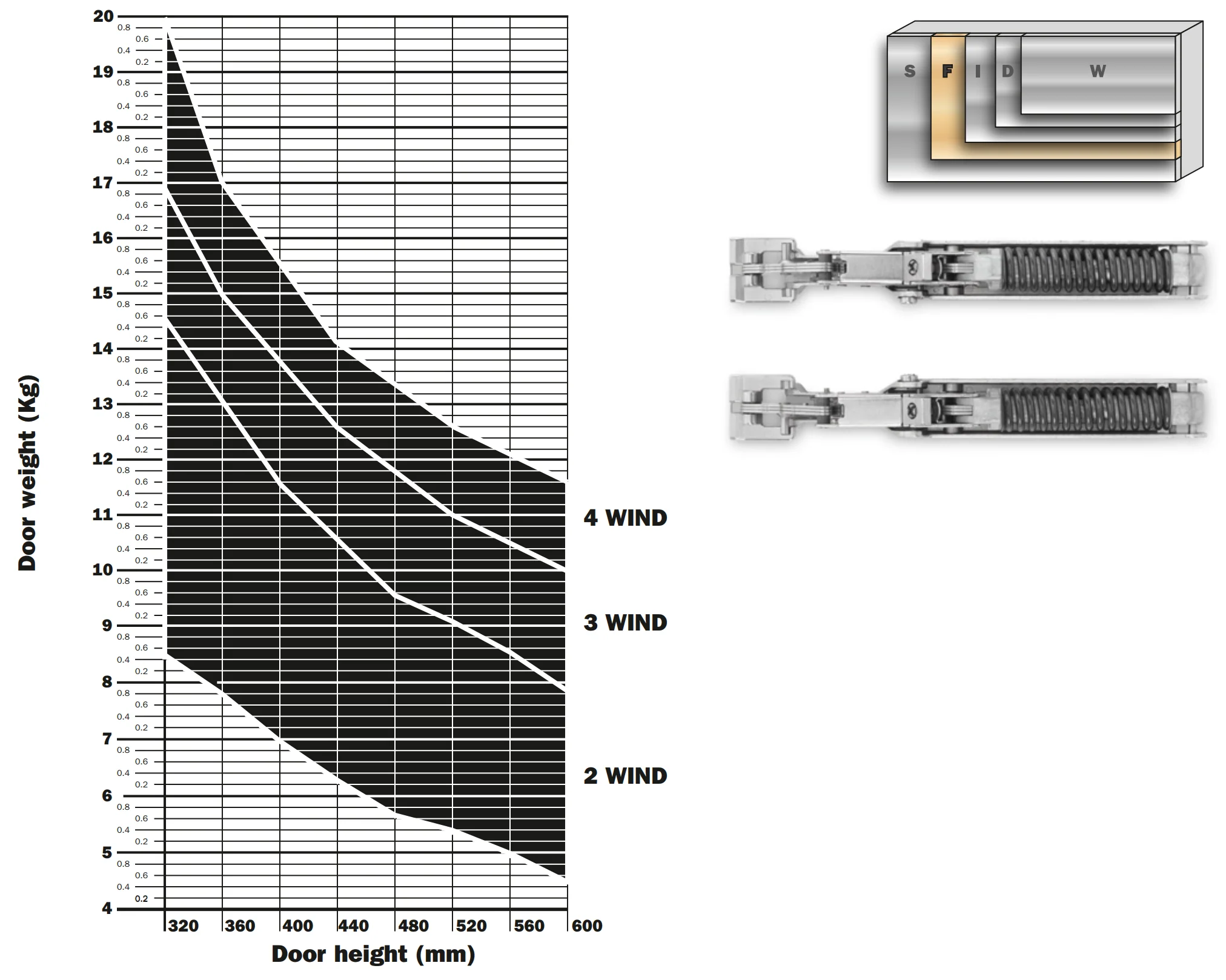

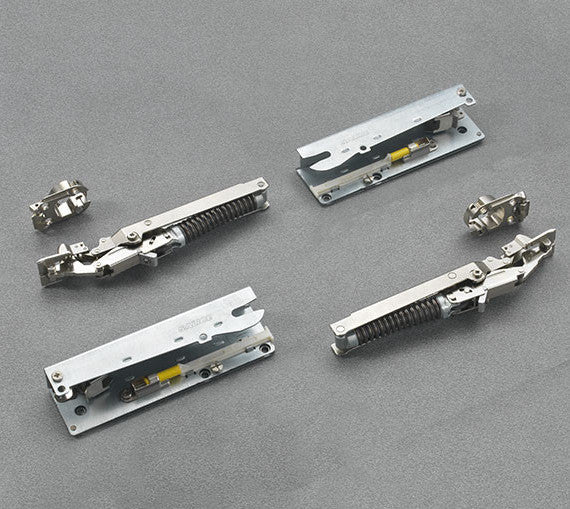

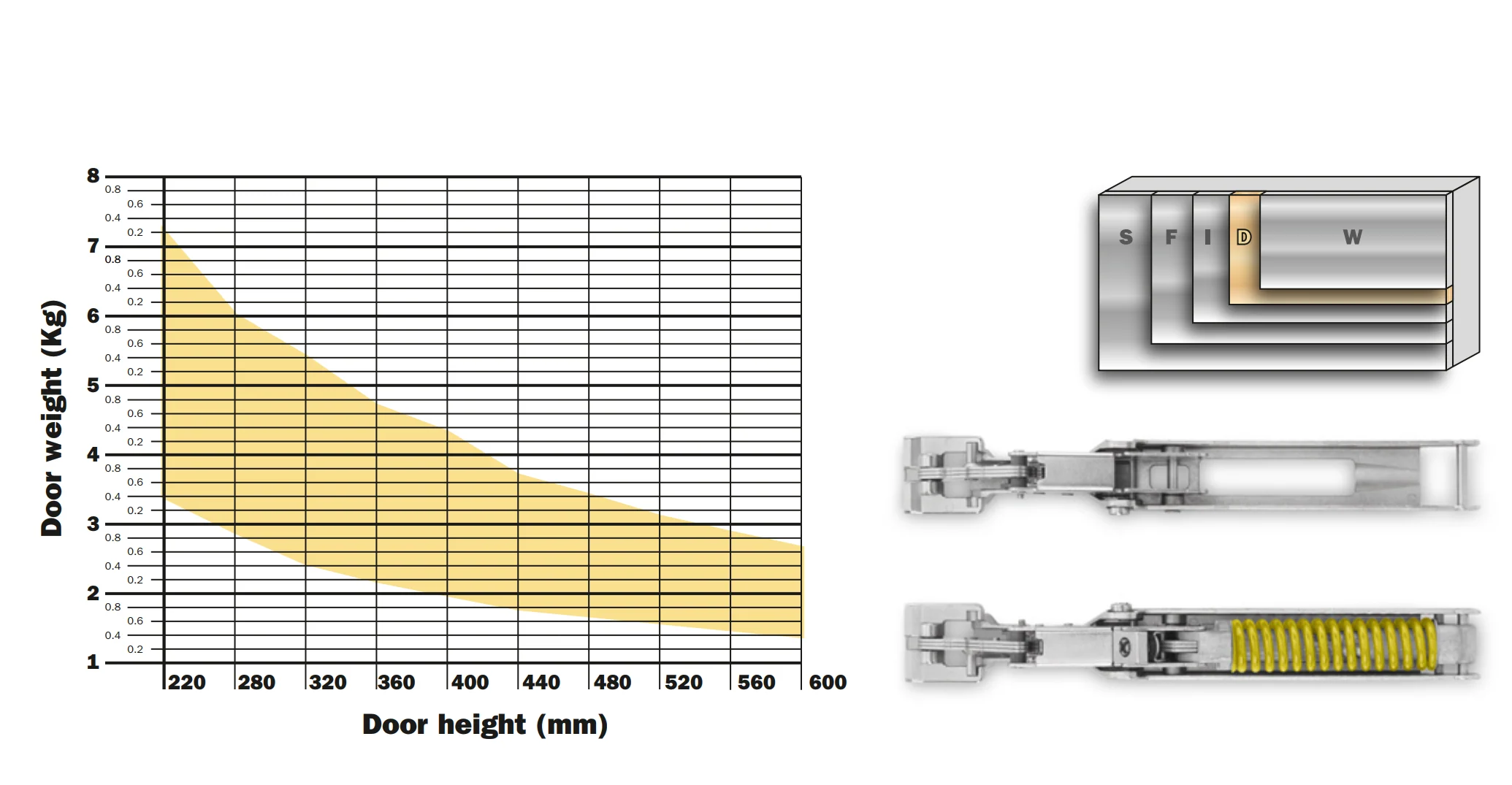

• 1 pair of Wind Lift Mechanisms (select strength required)

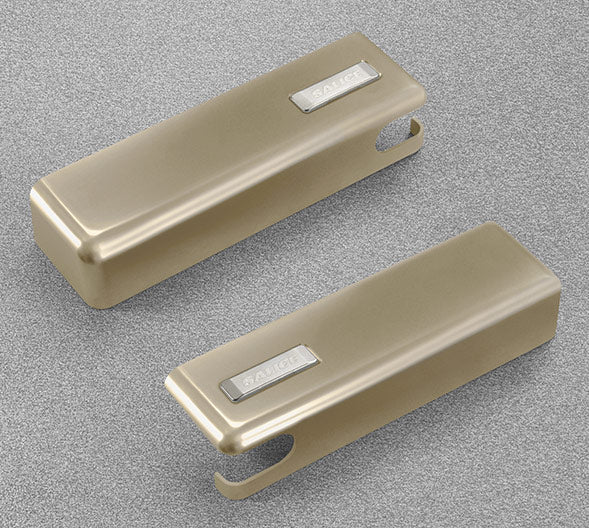

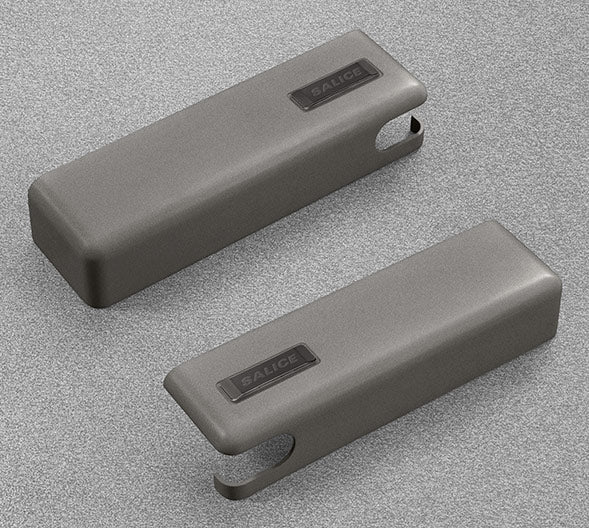

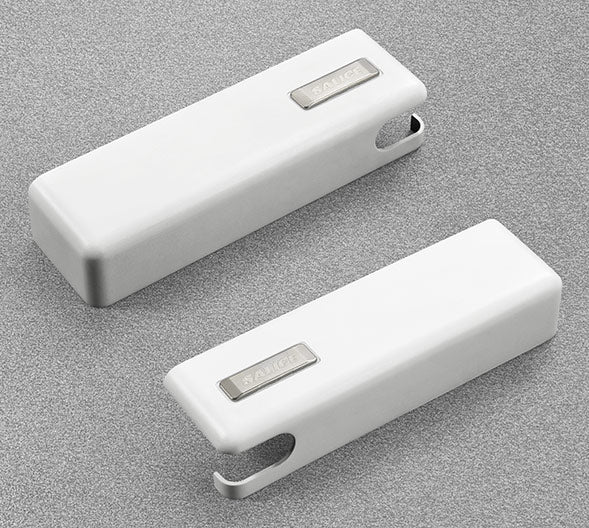

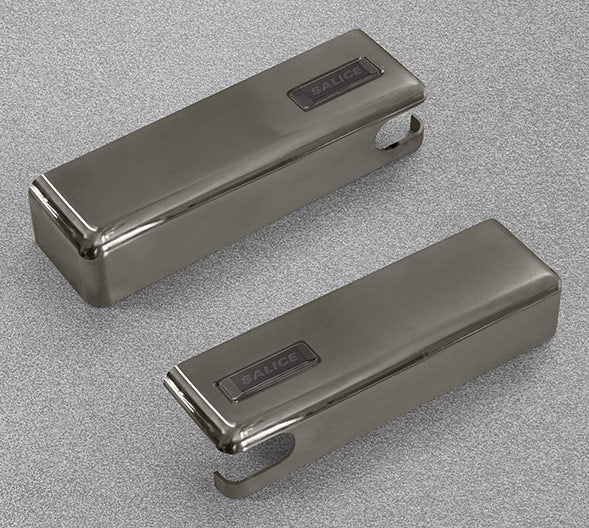

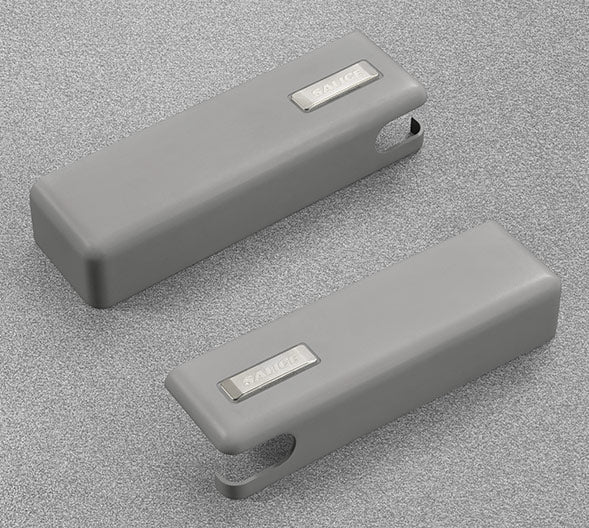

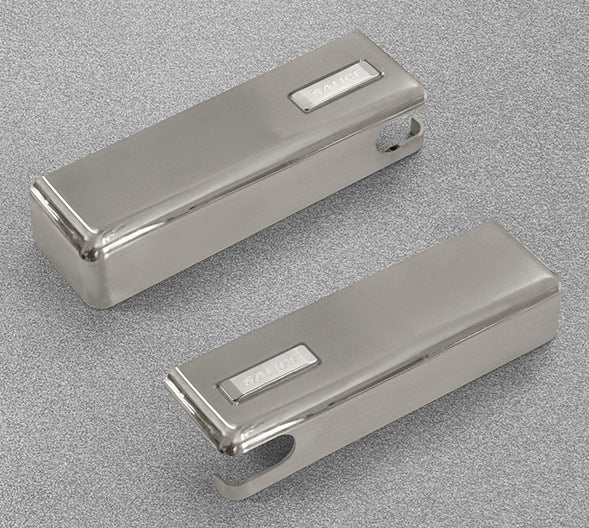

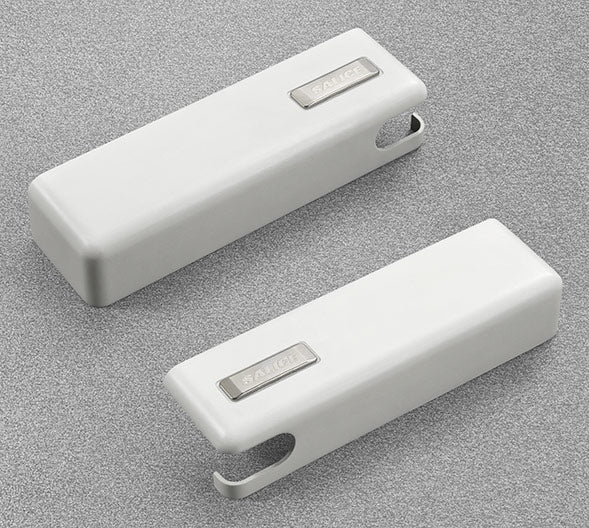

• 1 pair of covers (select finish required)


The new Salice Wind lift system is a revolutionary new product. Combining the highest levels of performance with smooth and perfectly controlled movement, this new lift system has strong functional appeal and takes up a minimum of valuable storage space; thanks to these features, it can be used in both small and large cabinets.

Wind is a completely mechanical system characterised by easy and fast tool- free installation to the door and the cabinet. In addition to the standard three-directional adjustments of door position - height, sideways and depth, it is also possible to adjust the decelerating effect in relationship to the size and the weight of the door.

Extremely versatile, Wind is suitable for a vast range of furniture applications: office furniture, kitchens, bathrooms, living- and bedroom furniture.

Wind is available in numerous attractive finishes to harmonise perfectly with all cabinet interiors.

Technical Details

• Soft close mechanism for decelerated closing
• Standard 35mm diameter drilling
• 13mm deep cup
• 85° opening with stop device (premounted)
• 94° opening without stop device
• Possible drilling distance on the door (K): from 3 to 7 mm

Downloads

 Salice Wind Technical Brochure
