Salice Futura Push Synchronizer for Full Extension Runners

Please note that this synchroniser bar will only work with Salice drawer runners marked 65577 or that have a tab on the runner to receive the synchroniser.

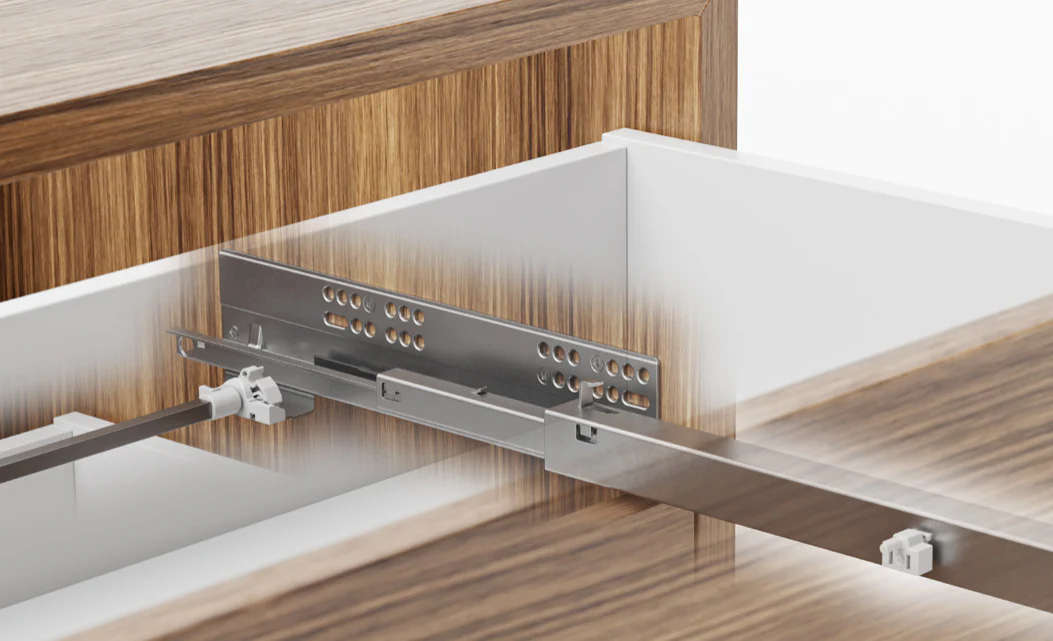

The synchronisation system for Push-open Futura runners has been developed to ensure that drawers of any width can be opened with minimum effort.

The system links the two runners, which thus become a single element; a pressure at any point of the drawer front (even at the extremities), is sufficient for the Push mechanism to release and consequently for the drawer to self-open.

It can be used on drawers of any width; however, it is recommended for drawers over 80 cm in width.

In the box:

• 1 stabiliser Bar (1150mm long)
• 2 driver pins
• 1 right carrier plate
• 1 left carrier plate

Technical Details:

• Maximum internal cabinet width = 1300mm
• Supplied bar length 1150mm, simply cut to size
• 65mm grove in the rear of the drawer required
• Bar width required = internal cabinet width - 185mm
• Use of bumpers not recommended for the correct operation of Push mechanism when the drawer front is pressed


Downloads

 Technical Pamphlet
