Salice APKF7X51150 Push Synchronizer Bar Kit – for Progressa Push Runners

The synchronisation system for Push-open Progressa runners has been developed to ensure that drawers of any width can be opened with minimum effort.

The system links the two runners, which thus become a single element; a pressure at any point of the drawer front (even at the extremities), is sufficient for the Push mechanism to release and consequently for the drawer to self-open.

It is recommended for drawers over 80 cm in width.

Designed for use with all sizes of:

• Progressa Push (except 250mm and 300mm lengths)
• Progressa+ Push
• Progressa+ Shelf Push


In the box:

• 1 stabiliser Bar (1150mm long)
• 2 driver pins
• 1 right carrier plate
• 1 left carrier plate

Technical Details:

• Minimum internal cabinet width = 280mm
• Maximum internal cabinet width = 1305mm
• Supplied bar length 1150mm, simply cut to size

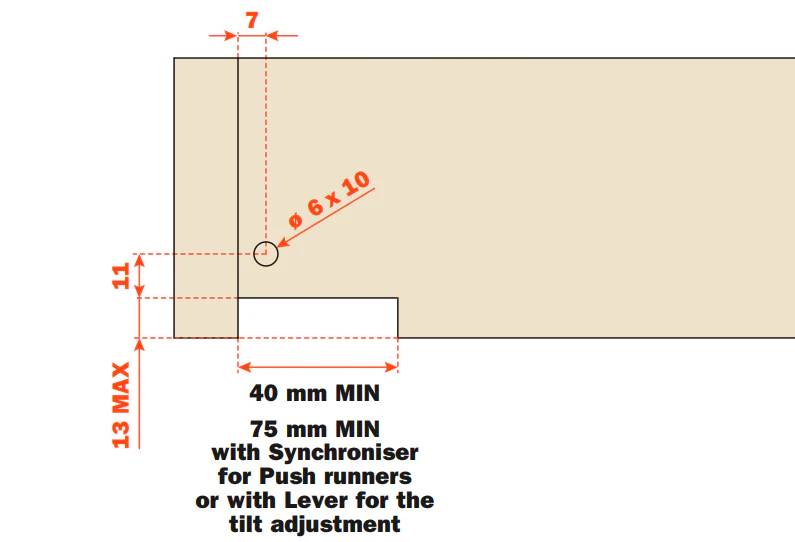

• 76mm grove in the rear of the drawer required

• Use of bumpers not recommended for the correct operation of Push mechanism when the drawer front is pressed
